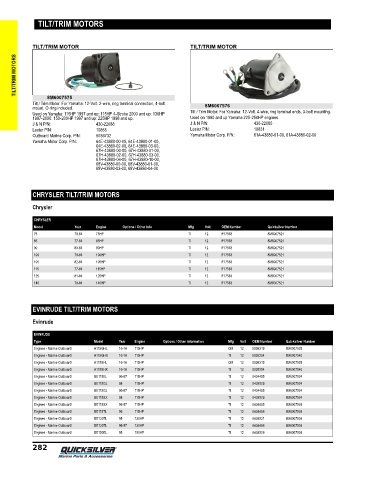

Page 287 - QUICKSILVER MARINE PARTS GUIDE (2019)

TILT/TRIM MOTORS

TILT/TRIM MOTOR TILT/TRIM MOTOR
TILT/TRIM MOTORS

8M6007575
Tilt / Trim Motor: For Yamaha: 12‑Volt. 2‑wire, ring terminal connection, 4‑bolt 8M6007576
mount. O‑ring included.
Used on Yamaha: 115HP 1997 and up: 115HP 4‑Stroke 2000 and up: 130HP Tilt / Trim Motor: For Yamaha: 12‑Volt. 4‑wire, ring terminal ends, 3‑bolt mounting.
1997‑2000: 150‑200HP 1997 and up: 225HP 1998 and up. Used on 1990 and up Yamaha 225‑250HP engines.
J & N P/N: 430-22088 J & N P/N: 430-22080
Lester P/N: 10855 Lester P/N: 10831
Outboard Marine Corp. P/N: 5036732 Yamaha Motor Corp. P/N: 61A-43880-01-00, 61A-43880-02-00
Yamaha Motor Corp. P/N: 64E-43880-00-00, 64E-43880-01-00,
64E-43880-02-00, 64E-43880-03-00,
67H-43880-00-00, 67H-43880-01-00,
67H-43880-02-00, 67H-43880-03-00,
67H-43880-04-00, 67H-43880-10-00,
68V-43880-00-00, 68V-43880-01-00,
68V-43880-03-00, 68V-43880-04-00

CHRYSLER TILT/TRIM MOTORS

Chrysler

CHRYSLER
Model Year Engine Options / Other Info Mfg Volt OEM Number Quicksilver Number
75 79-84 75HP TI 12 F17563 8M6007521
85 77-84 85HP TI 12 F17563 8M6007521
90 83-84 90HP TI 12 F17563 8M6007521
100 79-84 100HP TI 12 F17563 8M6007521
105 82-84 105HP TI 12 F17563 8M6007521
115 77-84 115HP TI 12 F17563 8M6007521
125 81-84 125HP TI 12 F17563 8M6007521
140 79-84 140HP TI 12 F17563 8M6007521

EVINRUDE TILT/TRIM MOTORS

Evinrude
EVINRUDE
Type Model Year Engine Options / Other Information Mfg Volt OEM Number Quicksilver Number
Engines - Marine Outboard A115GHL 16-18 115HP OM 12 5006319 8M6007529
Engines - Marine Outboard A115GHX 16-18 115HP TI 12 5005254 8M6007540
Engines - Marine Outboard A115SHL 16-18 115HP OM 12 5006319 8M6007529
Engines - Marine Outboard A115SHX 16-18 115HP TI 12 5005254 8M6007540
Engines - Marine Outboard BE115EL 96-97 115HP TI 12 0434495 8M6007524
Engines - Marine Outboard BE115GL 98 115HP TI 12 0438529 8M6007524
Engines - Marine Outboard BE115GL 96-97 115HP TI 12 0434495 8M6007524
Engines - Marine Outboard BE115SX 98 115HP TI 12 0438529 8M6007524
Engines - Marine Outboard BE115SX 96-97 115HP TI 12 0434495 8M6007524
Engines - Marine Outboard BE115TL 96 115HP TI 12 0434496 8M6007524
Engines - Marine Outboard BE130TL 98 130HP TI 12 0438531 8M6007524
Engines - Marine Outboard BE130TL 96-97 130HP TI 12 0434496 8M6007524
Engines - Marine Outboard BE150EL 98 150HP TI 12 0438529 8M6007524
282
