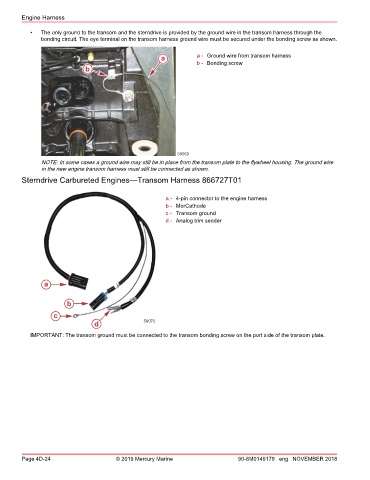

Engine Harness

• The only ground to the transom and the sterndrive is provided by the ground wire in the transom harness through the
bonding circuit. The eye terminal on the transom harness ground wire must be secured under the bonding screw as shown.

a a - Ground wire from transom harness
b - Bonding screw
b

58069
NOTE: In some cases a ground wire may still be in place from the transom plate to the flywheel housing. The ground wire
in the new engine transom harness must still be connected as shown.
Sterndrive Carbureted Engines—Transom Harness 866727T01

a - 4‑pin connector to the engine harness
b - MerCathode
c - Transom ground
d - Analog trim sender

a

b
c
d 58072
IMPORTANT: The transom ground must be connected to the transom bonding screw on the port side of the transom plate.
