Ignition System

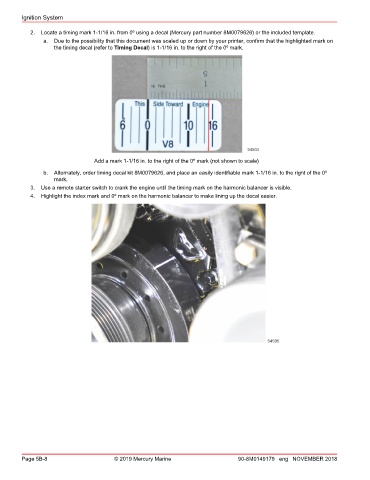

2. Locate a timing mark 1‑1/16 in. from 0º using a decal (Mercury part number 8M0079626) or the included template.
a. Due to the possibility that this document was scaled up or down by your printer, confirm that the highlighted mark on
the timing decal (refer to Timing Decal) is 1‑1/16 in. to the right of the 0º mark.
54504
Add a mark 1-1/16 in. to the right of the 0º mark (not shown to scale)
b. Alternately, order timing decal kit 8M0079626, and place an easily identifiable mark 1‑1/16 in. to the right of the 0º
mark.
3. Use a remote starter switch to crank the engine until the timing mark on the harmonic balancer is visible.
4. Highlight the index mark and 0º mark on the harmonic balancer to make lining up the decal easier.
54505
