Battery and Electrical

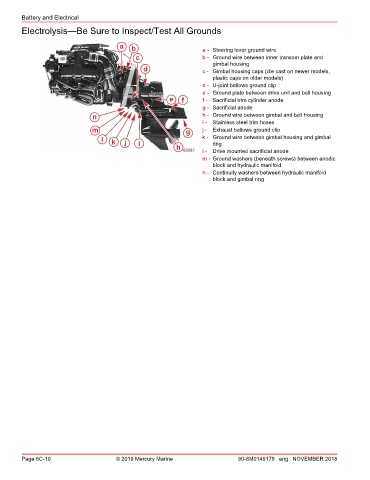

Electrolysis—Be Sure to Inspect/Test All Grounds
a b a - Steering lever ground wire
c b - Ground wire between inner transom plate and
gimbal housing
d c - Gimbal housing caps (die cast on newer models,
plastic caps on older models)
d - U‑joint bellows ground clip
e - Ground plate between drive unit and bell housing
e f f - Sacrificial trim cylinder anode
g - Sacrificial anode
n h - Ground wire between gimbal and bell housing
i - Stainless steel trim hoses
m g j - Exhaust bellows ground clip
l k j k - Ground wire between gimbal housing and gimbal
i
ring
h 68087 l - Drive mounted sacrificial anode
m - Ground washers (beneath screws) between anodic
block and hydraulic manifold
n - Continuity washers between hydraulic manifold
block and gimbal ring
