Battery and Electrical

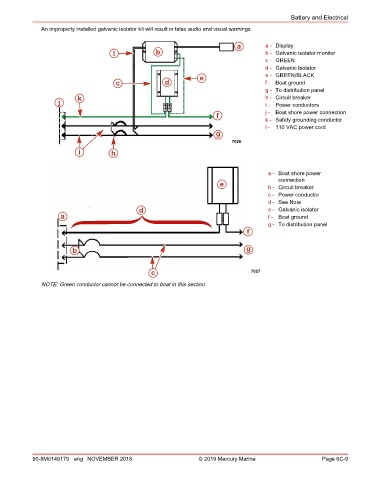

An improperly installed galvanic isolator kit will result in false audio and visual warnings.

a a - Display
l b b - Galvanic isolator monitor
c - GREEN
d - Galvanic Isolator
e e - GREEN/BLACK
c d f - Boat ground
g - To distribution panel
k h - Circuit breaker
j i - Power conductors
j - Boat shore power connection
f
k - Safety grounding conductor
l - 110 VAC power cord
g
7026
i h

a - Boat shore power
connection
e b - Circuit breaker
c - Power conductor
d - See Note
d e - Galvanic isolator
a f - Boat ground
g - To distribution panel
f

b g

c 7027

NOTE: Green conductor cannot be connected to boat in this section.
