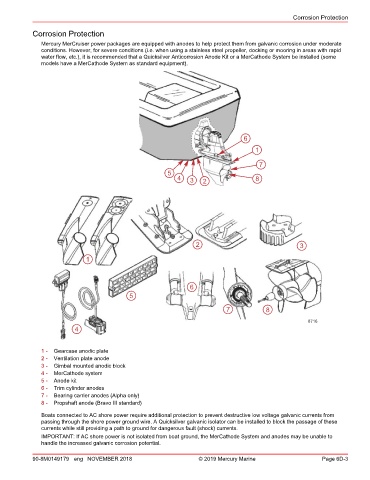

Corrosion Protection

Corrosion Protection
Mercury MerCruiser power packages are equipped with anodes to help protect them from galvanic corrosion under moderate
conditions. However, for severe conditions (i.e. when using a stainless steel propeller, docking or mooring in areas with rapid
water flow, etc.), it is recommended that a Quicksilver Anticorrosion Anode Kit or a MerCathode System be installed (some
models have a MerCathode System as standard equipment).

6
1

7
5
4 3 2 8

2 3

1

6
5

7 8

8716
4

1 - Gearcase anodic plate
2 - Ventilation plate anode
3 - Gimbal mounted anodic block
4 - MerCathode system
5 - Anode kit
6 - Trim cylinder anodes
7 - Bearing carrier anodes (Alpha only)
8 - Propshaft anode (Bravo III standard)

Boats connected to AC shore power require additional protection to prevent destructive low voltage galvanic currents from
passing through the shore power ground wire. A Quicksilver galvanic isolator can be installed to block the passage of these
currents while still providing a path to ground for dangerous fault (shock) currents.
IMPORTANT: If AC shore power is not isolated from boat ground, the MerCathode System and anodes may be unable to
handle the increased galvanic corrosion potential.

90-8M0149179 eng NOVEMBER 2018 © 2019 Mercury Marine Page 6D-3
