Corrosion Protection

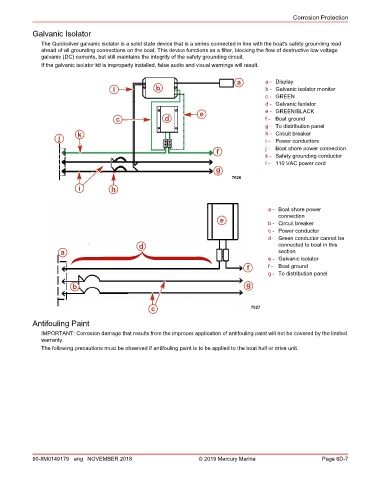

Galvanic Isolator
The Quicksilver galvanic isolator is a solid state device that is a series connected in line with the boat's safety grounding lead
ahead of all grounding connections on the boat. This device functions as a filter, blocking the flow of destructive low voltage
galvanic (DC) currents, but still maintains the integrity of the safety grounding circuit.
If the galvanic isolator kit is improperly installed, false audio and visual warnings will result.

a a - Display
l b b - Galvanic isolator monitor
c - GREEN
d - Galvanic Isolator
e e - GREEN/BLACK
c d f - Boat ground
g - To distribution panel
k h - Circuit breaker
j i - Power conductors
j - Boat shore power connection
f
k - Safety grounding conductor
l - 110 VAC power cord
g
7026
i h

a - Boat shore power
connection
e b - Circuit breaker
c - Power conductor
d - Green conductor cannot be
d connected to boat in this
a section
e - Galvanic isolator
f f - Boat ground
g - To distribution panel
b g

c 7027

Antifouling Paint
IMPORTANT: Corrosion damage that results from the improper application of antifouling paint will not be covered by the limited
warranty.
The following precautions must be observed if antifouling paint is to be applied to the boat hull or drive unit.
