Manifolds, Elbows, and Risers for Wet Joint

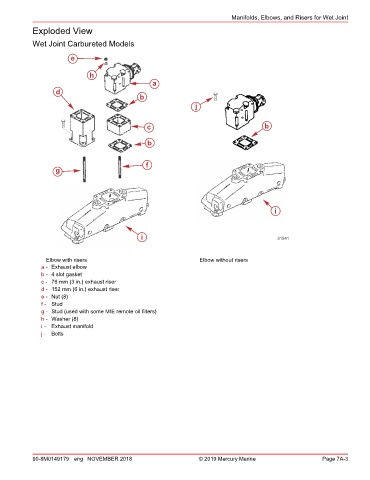

Exploded View

Wet Joint Carbureted Models

e

h
a
d
b
j

c b

b

f
g

i

i 31541

Elbow with risers Elbow without risers
a - Exhaust elbow
b - 4 slot gasket
c - 76 mm (3 in.) exhaust riser
d - 152 mm (6 in.) exhaust riser
e - Nut (8)
f - Stud
g - Stud (used with some MIE remote oil filters)
h - Washer (8)
i - Exhaust manifold
j - Bolts
