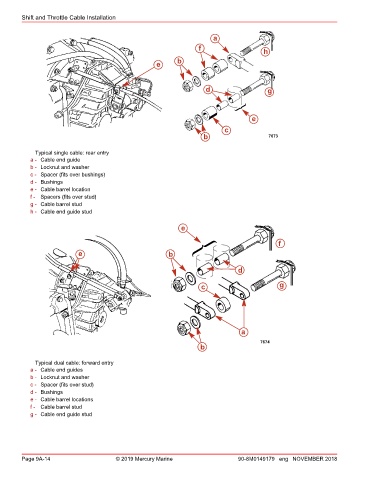

Shift and Throttle Cable Installation
a
f h
e b
d g
e
c
b 7673
Typical single cable: rear entry
a - Cable end guide
b - Locknut and washer
c - Spacer (fits over bushings)
d - Bushings
e - Cable barrel location
f - Spacers (fits over stud)
g - Cable barrel stud
h - Cable end guide stud
e
f
e b
d
c g
a
7674
b
Typical dual cable: forward entry
a - Cable end guides
b - Locknut and washer
c - Spacer (fits over stud)
d - Bushings
e - Cable barrel locations
f - Cable barrel stud
g - Cable end guide stud
