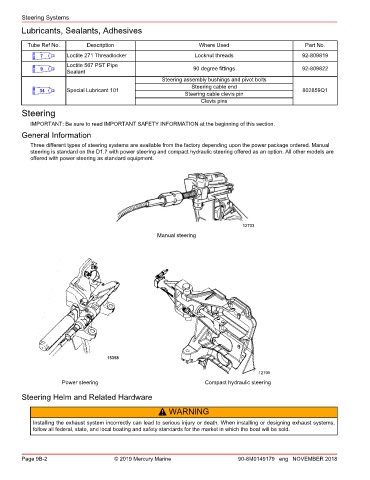

Page 326 - REPOWER REFERENCE GUIDE (2020)

Steering Systems
Lubricants, Sealants, Adhesives

Tube Ref No. Description Where Used Part No.

7 Loctite 271 Threadlocker Locknut threads 92-809819
Loctite 567 PST Pipe
9 90 degree fittings 92-809822
Sealant
Steering assembly bushings and pivot bolts
Steering cable end
34 Special Lubricant 101 802859Q1
Steering cable clevis pin
Clevis pins
Steering

IMPORTANT: Be sure to read IMPORTANT SAFETY INFORMATION at the beginning of this section.
General Information
Three different types of steering systems are available from the factory depending upon the power package ordered. Manual
steering is standard on the D1.7 with power steering and compact hydraulic steering offered as an option. All other models are
offered with power steering as standard equipment.

12703
Manual steering

15358

12705
Power steering Compact hydraulic steering

Steering Helm and Related Hardware

! WARNING
Installing the exhaust system incorrectly can lead to serious injury or death. When installing or designing exhaust systems,
follow all federal, state, and local boating and safety standards for the market in which the boat will be sold.

Page 9B-2 © 2019 Mercury Marine 90-8M0149179 eng NOVEMBER 2018
