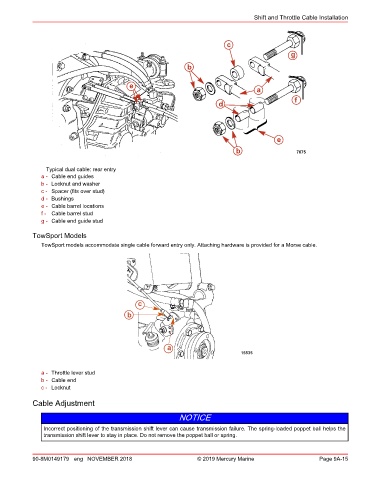

Page 323 - REPOWER REFERENCE GUIDE (2020)

Shift and Throttle Cable Installation

c
g

b

e
a
f
d

e
b 7675

Typical dual cable: rear entry
a - Cable end guides
b - Locknut and washer
c - Spacer (fits over stud)
d - Bushings
e - Cable barrel locations
f - Cable barrel stud
g - Cable end guide stud

TowSport Models
TowSport models accommodate single cable forward entry only. Attaching hardware is provided for a Morse cable.

c
b

a
15535

a - Throttle lever stud
b - Cable end
c - Locknut

Cable Adjustment

NOTICE

Incorrect positioning of the transmission shift lever can cause transmission failure. The spring‑loaded poppet ball helps the
transmission shift lever to stay in place. Do not remove the poppet ball or spring.

90-8M0149179 eng NOVEMBER 2018 © 2019 Mercury Marine Page 9A-15
