Diagrams

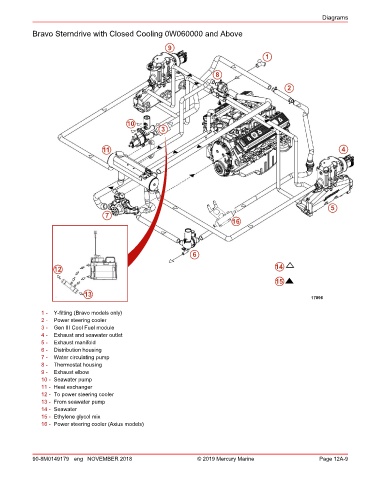

Bravo Sterndrive with Closed Cooling 0W060000 and Above

9
1

8
2

10
3

11 4

5
7
16

6

12 14
15

13
17896

1 - Y‑fitting (Bravo models only)
2 - Power steering cooler
3 - Gen III Cool Fuel module
4 - Exhaust and seawater outlet
5 - Exhaust manifold
6 - Distribution housing
7 - Water circulating pump
8 - Thermostat housing
9 - Exhaust elbow
10 - Seawater pump
11 - Heat exchanger
12 - To power steering cooler
13 - From seawater pump
14 - Seawater
15 - Ethylene glycol mix
16 - Power steering cooler (Axius models)

90-8M0149179 eng NOVEMBER 2018 © 2019 Mercury Marine Page 12A-9
