Diagrams

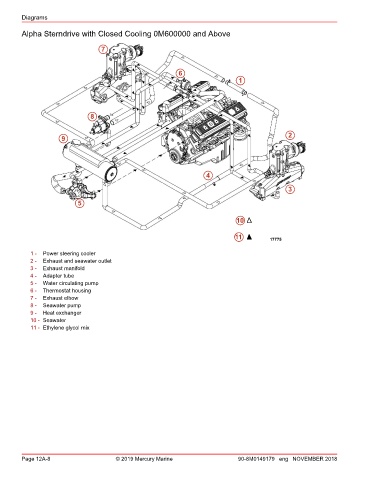

Alpha Sterndrive with Closed Cooling 0M600000 and Above
7
6
1
8
9 2
4
3
5
10
11 17775
1 - Power steering cooler
2 - Exhaust and seawater outlet
3 - Exhaust manifold
4 - Adapter tube
5 - Water circulating pump
6 - Thermostat housing
7 - Exhaust elbow
8 - Seawater pump
9 - Heat exchanger
10 - Seawater
11 - Ethylene glycol mix
