Diagrams

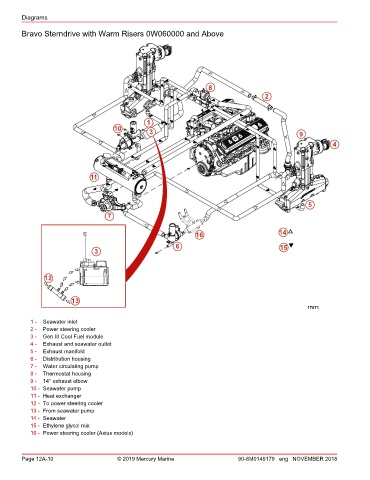

Bravo Sterndrive with Warm Risers 0W060000 and Above
8
2
1
10 3 9
4
11
5
7
16 14
6 15
3
12
13
17071
1 - Seawater inlet
2 - Power steering cooler
3 - Gen III Cool Fuel module
4 - Exhaust and seawater outlet
5 - Exhaust manifold
6 - Distribution housing
7 - Water circulating pump
8 - Thermostat housing
9 - 14° exhaust elbow
10 - Seawater pump
11 - Heat exchanger
12 - To power steering cooler
13 - From seawater pump
14 - Seawater
15 - Ethylene glycol mix
16 - Power steering cooler (Axius models)
