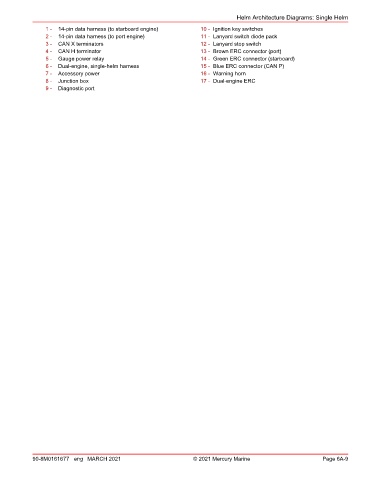

Helm Architecture Diagrams: Single Helm
1 - 14‑pin data harness (to starboard engine) 10 - Ignition key switches
2 - 14‑pin data harness (to port engine) 11 - Lanyard switch diode pack
3 - CAN X terminators 12 - Lanyard stop switch
4 - CAN H terminator 13 - Brown ERC connector (port)
5 - Gauge power relay 14 - Green ERC connector (starboard)
6 - Dual‑engine, single‑helm harness 15 - Blue ERC connector (CAN P)
7 - Accessory power 16 - Warning horn
8 - Junction box 17 - Dual‑engine ERC
9 - Diagnostic port
