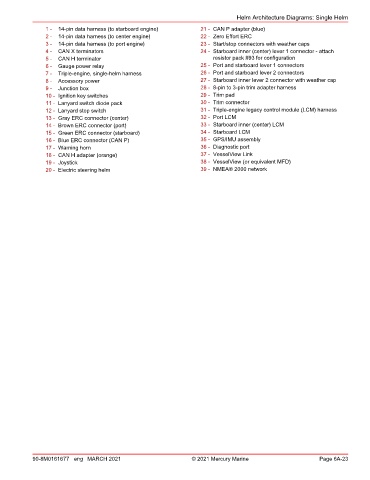

Helm Architecture Diagrams: Single Helm
1 - 14‑pin data harness (to starboard engine) 21 - CAN P adapter (blue)
2 - 14‑pin data harness (to center engine) 22 - Zero Effort ERC
3 - 14‑pin data harness (to port engine) 23 - Start/stop connectors with weather caps
4 - CAN X terminators 24 - Starboard inner (center) lever 1 connector ‑ attach
5 - CAN H terminator resistor pack #93 for configuration
6 - Gauge power relay 25 - Port and starboard lever 1 connectors
7 - Triple‑engine, single‑helm harness 26 - Port and starboard lever 2 connectors
8 - Accessory power 27 - Starboard inner lever 2 connector with weather cap
9 - Junction box 28 - 8‑pin to 3‑pin trim adapter harness
10 - Ignition key switches 29 - Trim pad
11 - Lanyard switch diode pack 30 - Trim connector
12 - Lanyard stop switch 31 - Triple‑engine legacy control module (LCM) harness
13 - Gray ERC connector (center) 32 - Port LCM
14 - Brown ERC connector (port) 33 - Starboard inner (center) LCM
15 - Green ERC connector (starboard) 34 - Starboard LCM
16 - Blue ERC connector (CAN P) 35 - GPS/IMU assembly
17 - Warning horn 36 - Diagnostic port
18 - CAN H adapter (orange) 37 - VesselView Link
19 - Joystick 38 - VesselView (or equivalent MFD)
20 - Electric steering helm 39 - NMEA® 2000 network
