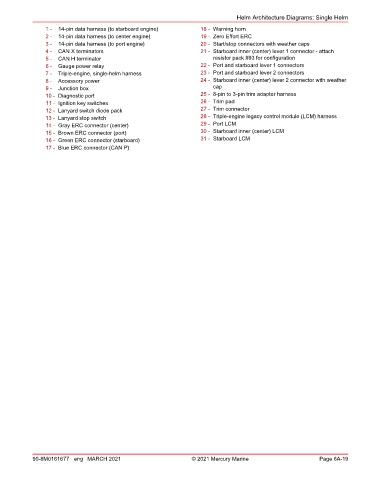

Helm Architecture Diagrams: Single Helm
1 - 14‑pin data harness (to starboard engine) 18 - Warning horn
2 - 14‑pin data harness (to center engine) 19 - Zero Effort ERC
3 - 14‑pin data harness (to port engine) 20 - Start/stop connectors with weather caps
4 - CAN X terminators 21 - Starboard inner (center) lever 1 connector ‑ attach
5 - CAN H terminator resistor pack #93 for configuration
6 - Gauge power relay 22 - Port and starboard lever 1 connectors
7 - Triple‑engine, single‑helm harness 23 - Port and starboard lever 2 connectors
8 - Accessory power 24 - Starboard inner (center) lever 2 connector with weather
9 - Junction box cap
10 - Diagnostic port 25 - 8‑pin to 3‑pin trim adapter harness
11 - Ignition key switches 26 - Trim pad
12 - Lanyard switch diode pack 27 - Trim connector
13 - Lanyard stop switch 28 - Triple‑engine legacy control module (LCM) harness
14 - Gray ERC connector (center) 29 - Port LCM
15 - Brown ERC connector (port) 30 - Starboard inner (center) LCM
16 - Green ERC connector (starboard) 31 - Starboard LCM
17 - Blue ERC connector (CAN P)
