Console Mount ERC—Single Handle

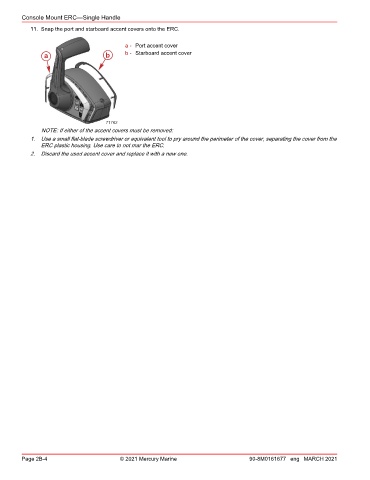

11. Snap the port and starboard accent covers onto the ERC.

a - Port accent cover
a b b - Starboard accent cover

71762
NOTE: If either of the accent covers must be removed:
1. Use a small flat‑blade screwdriver or equivalent tool to pry around the perimeter of the cover, separating the cover from the
ERC plastic housing. Use care to not mar the ERC.
2. Discard the used accent cover and replace it with a new one.

Page 2B-4 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
