Helm Harnesses - Single Helm

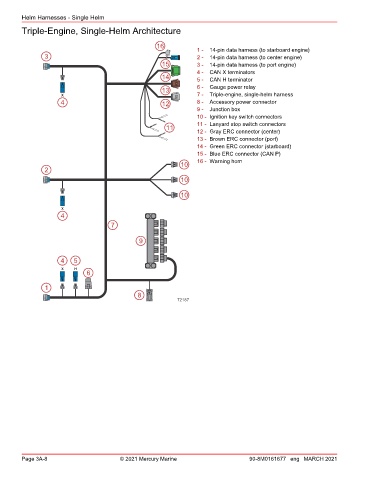

Triple‑Engine, Single‑Helm Architecture

16
1 - 14‑pin data harness (to starboard engine)
3 2 - 14‑pin data harness (to center engine)
15 3 - 14‑pin data harness (to port engine)
4 - CAN X terminators
14 5 - CAN H terminator
6 - Gauge power relay
13
X 7 - Triple‑engine, single‑helm harness
4 12 8 - Accessory power connector
9 - Junction box
10 - Ignition key switch connectors
11 - Lanyard stop switch connectors
11
12 - Gray ERC connector (center)
13 - Brown ERC connector (port)
14 - Green ERC connector (starboard)
15 - Blue ERC connector (CAN P)
16 - Warning horn
10
2
10

10

X
4
7

9

4 5
X H
6

1
8
