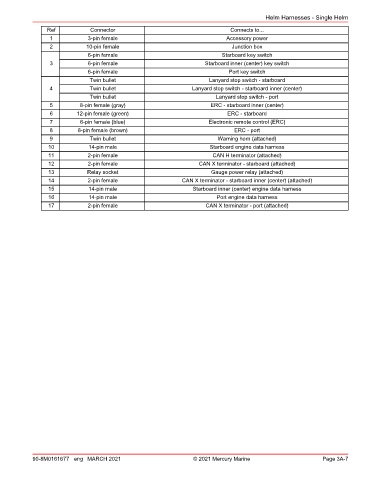

Helm Harnesses - Single Helm
Ref Connector Connects to...
1 3‑pin female Accessory power
2 10‑pin female Junction box
6‑pin female Starboard key switch
3 6‑pin female Starboard inner (center) key switch
6‑pin female Port key switch
Twin bullet Lanyard stop switch ‑ starboard
4 Twin bullet Lanyard stop switch ‑ starboard inner (center)
Twin bullet Lanyard stop switch ‑ port
5 8‑pin female (gray) ERC ‑ starboard inner (center)
6 12‑pin female (green) ERC ‑ starboard
7 6‑pin female (blue) Electronic remote control (ERC)
8 8‑pin female (brown) ERC ‑ port
9 Twin bullet Warning horn (attached)
10 14‑pin male Starboard engine data harness
11 2‑pin female CAN H terminator (attached)
12 2‑pin female CAN X terminator ‑ starboard (attached)
13 Relay socket Gauge power relay (attached)
14 2‑pin female CAN X terminator ‑ starboard inner (center) (attached)
15 14‑pin male Starboard inner (center) engine data harness
16 14‑pin male Port engine data harness
17 2‑pin female CAN X terminator ‑ port (attached)

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 3A-7
