Helm Harnesses - Single Helm

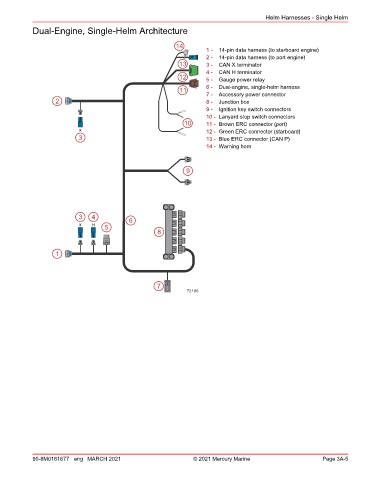

Dual‑Engine, Single‑Helm Architecture

14
1 - 14‑pin data harness (to starboard engine)
2 - 14‑pin data harness (to port engine)
13 3 - CAN X terminator
4 - CAN H terminator
12 5 - Gauge power relay
6 - Dual‑engine, single‑helm harness
11
7 - Accessory power connector
2 8 - Junction box
9 - Ignition key switch connectors
10 - Lanyard stop switch connectors
10 11 - Brown ERC connector (port)
X 12 - Green ERC connector (starboard)
3 13 - Blue ERC connector (CAN P)
14 - Warning horn

9

3 4 6
X H
5
8

1

7
72186

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 3A-5
