Helm Harnesses - Single Helm

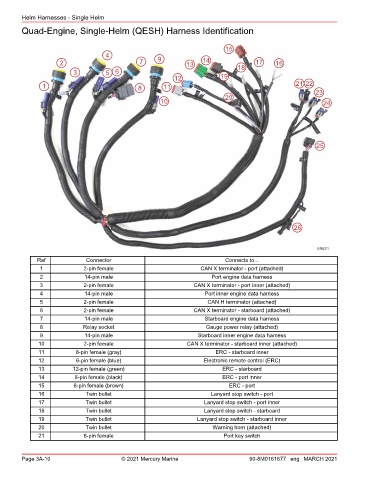

Quad‑Engine, Single‑Helm (QESH) Harness Identification

15
4 9
2 7 13 14 18 17 16
3 5 6
12 19
1 8 11 21 22
20 23
10 24

25

26

69521
Ref Connector Connects to...
1 2‑pin female CAN X terminator ‑ port (attached)
2 14‑pin male Port engine data harness
3 2‑pin female CAN X terminator ‑ port inner (attached)
4 14‑pin male Port inner engine data harness
5 2‑pin female CAN H terminator (attached)
6 2‑pin female CAN X terminator ‑ starboard (attached)
7 14‑pin male Starboard engine data harness
8 Relay socket Gauge power relay (attached)
9 14‑pin male Starboard inner engine data harness
10 2‑pin female CAN X terminator ‑ starboard inner (attached)
11 8‑pin female (gray) ERC ‑ starboard inner
12 6‑pin female (blue) Electronic remote control (ERC)
13 12‑pin female (green) ERC ‑ starboard
14 8‑pin female (black) ERC ‑ port inner
15 8‑pin female (brown) ERC ‑ port
16 Twin bullet Lanyard stop switch ‑ port
17 Twin bullet Lanyard stop switch ‑ port inner
18 Twin bullet Lanyard stop switch ‑ starboard
19 Twin bullet Lanyard stop switch ‑ starboard inner
20 Twin bullet Warning horn (attached)
21 6‑pin female Port key switch

Page 3A-10 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
