Helm Harnesses - Single Helm

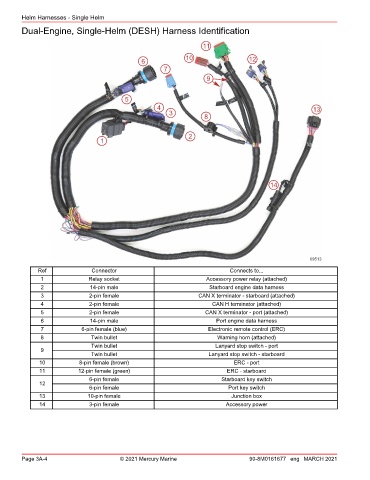

Dual‑Engine, Single‑Helm (DESH) Harness Identification
11
10
6 12
7
9
5
4 13
3
8
2
1
14
69513
Ref Connector Connects to...
1 Relay socket Accessory power relay (attached)
2 14‑pin male Starboard engine data harness
3 2‑pin female CAN X terminator ‑ starboard (attached)
4 2‑pin female CAN H terminator (attached)
5 2‑pin female CAN X terminator ‑ port (attached)
6 14‑pin male Port engine data harness
7 6‑pin female (blue) Electronic remote control (ERC)
8 Twin bullet Warning horn (attached)
Twin bullet Lanyard stop switch ‑ port
9
Twin bullet Lanyard stop switch ‑ starboard
10 8‑pin female (brown) ERC ‑ port
11 12‑pin female (green) ERC ‑ starboard
6‑pin female Starboard key switch
12
6‑pin female Port key switch
13 10‑pin female Junction box
14 3‑pin female Accessory power
