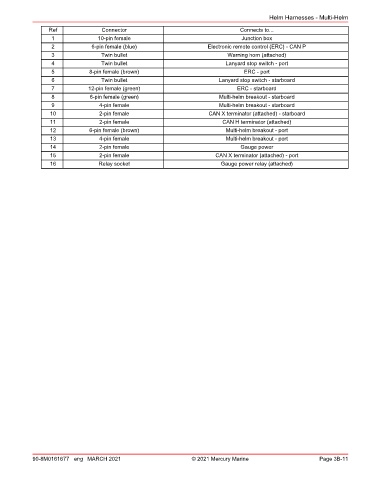

Page 73 - Installation Manual - GenII DTS

Helm Harnesses - Multi-Helm
Ref Connector Connects to...
1 10‑pin female Junction box
2 6‑pin female (blue) Electronic remote control (ERC) ‑ CAN P
3 Twin bullet Warning horn (attached)
4 Twin bullet Lanyard stop switch ‑ port
5 8‑pin female (brown) ERC ‑ port
6 Twin bullet Lanyard stop switch ‑ starboard
7 12‑pin female (green) ERC ‑ starboard
8 6‑pin female (green) Multi‑helm breakout ‑ starboard
9 4‑pin female Multi‑helm breakout ‑ starboard
10 2‑pin female CAN X terminator (attached) ‑ starboard
11 2‑pin female CAN H terminator (attached)
12 6‑pin female (brown) Multi‑helm breakout ‑ port
13 4‑pin female Multi‑helm breakout ‑ port
14 2‑pin female Gauge power
15 2‑pin female CAN X terminator (attached) ‑ port
16 Relay socket Gauge power relay (attached)
