Helm Harnesses - Multi-Helm
Triple‑Engine

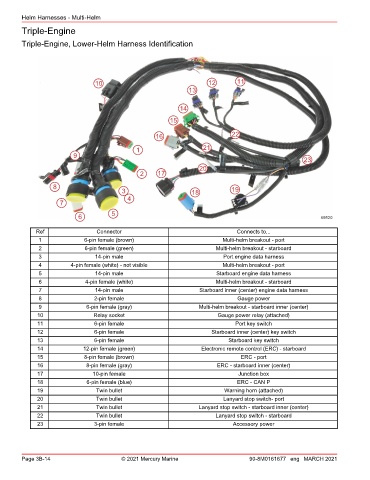

Triple‑Engine, Lower‑Helm Harness Identification

10 12 11
13

14
15

16 22

1 21
9
23
20
2 17

8
3 18 19
4
7
5
6 69520

Ref Connector Connects to...
1 6‑pin female (brown) Multi‑helm breakout ‑ port
2 6‑pin female (green) Multi‑helm breakout ‑ starboard
3 14‑pin male Port engine data harness
4 4‑pin female (white) ‑ not visible Multi‑helm breakout ‑ port
5 14‑pin male Starboard engine data harness
6 4‑pin female (white) Multi‑helm breakout ‑ starboard
7 14‑pin male Starboard inner (center) engine data harness
8 2‑pin female Gauge power
9 6‑pin female (gray) Multi‑helm breakout ‑ starboard inner (center)
10 Relay socket Gauge power relay (attached)
11 6‑pin female Port key switch
12 6‑pin female Starboard inner (center) key switch
13 6‑pin female Starboard key switch
14 12‑pin female (green) Electronic remote control (ERC) ‑ starboard
15 8‑pin female (brown) ERC ‑ port
16 8‑pin female (gray) ERC ‑ starboard inner (center)
17 10‑pin female Junction box
18 6‑pin female (blue) ERC ‑ CAN P
19 Twin bullet Warning horn (attached)
20 Twin bullet Lanyard stop switch‑ port
21 Twin bullet Lanyard stop switch ‑ starboard inner (center)
22 Twin bullet Lanyard stop switch ‑ starboard
23 3‑pin female Accessory power

Page 3B-14 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
