Helm Harnesses - Multi-Helm
Dual‑Engine

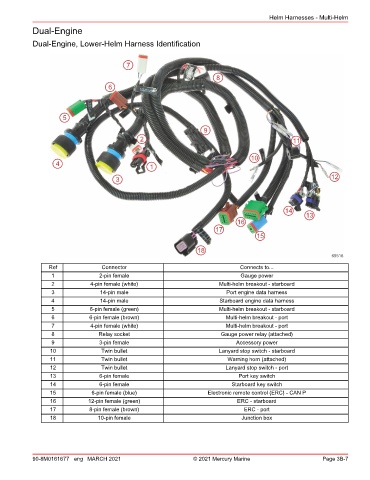

Dual‑Engine, Lower‑Helm Harness Identification

7
8
6

5
9
2 11

10
4 1

3 12

14
13
16
17
15

18
69516
Ref Connector Connects to...
1 2‑pin female Gauge power
2 4‑pin female (white) Multi‑helm breakout ‑ starboard
3 14‑pin male Port engine data harness
4 14‑pin male Starboard engine data harness
5 6‑pin female (green) Multi‑helm breakout ‑ starboard
6 6‑pin female (brown) Multi‑helm breakout ‑ port
7 4‑pin female (white) Multi‑helm breakout ‑ port
8 Relay socket Gauge power relay (attached)
9 3‑pin female Accessory power
10 Twin bullet Lanyard stop switch ‑ starboard
11 Twin bullet Warning horn (attached)
12 Twin bullet Lanyard stop switch ‑ port
13 6‑pin female Port key switch
14 6‑pin female Starboard key switch
15 6‑pin female (blue) Electronic remote control (ERC) ‑ CAN P
16 12‑pin female (green) ERC ‑ starboard
17 8‑pin female (brown) ERC ‑ port
18 10‑pin female Junction box

90-8M0161677 eng MARCH 2021 © 2021 Mercury Marine Page 3B-7
