Helm Harnesses - Multi-Helm

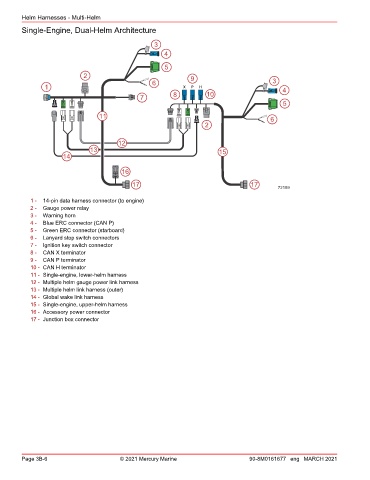

Single‑Engine, Dual‑Helm Architecture

3
4

5
2 9
6 3
1 X P H 4
7 8 10
5
11 6
2

12
13 15
14

16
17 17
72189

1 - 14‑pin data harness connector (to engine)
2 - Gauge power relay
3 - Warning horn
4 - Blue ERC connector (CAN P)
5 - Green ERC connector (starboard)
6 - Lanyard stop switch connectors
7 - Ignition key switch connector
8 - CAN X terminator
9 - CAN P terminator
10 - CAN H terminator
11 - Single‑engine, lower‑helm harness
12 - Multiple helm gauge power link harness
13 - Multiple helm link harness (outer)
14 - Global wake link harness
15 - Single‑engine, upper‑helm harness
16 - Accessory power connector
17 - Junction box connector

Page 3B-6 © 2021 Mercury Marine 90-8M0161677 eng MARCH 2021
