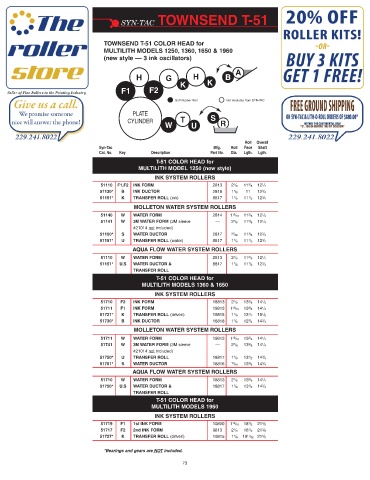

SYN-TAC TOWNSEND T-51

TOWNSEND T-51 COLOR HEAD for
MULTILITH MODELS 1250, 1360, 1650 & 1960
(new style –– 3 ink oscillators)
A
H G H B
K K
F1 F2
Soft Rubber Roll Not Available from SYN-TAC

PLATE
CYLINDER T S R
W U

Roll Overall
Syn-Tac Mfg. Roll Face Shaft
Cat. No. Key Description Part No. Dia. Lgth. Lgth.
T-51 COLOR HEAD for
MULTILITH MODEL 1250 (new style)
INK SYSTEM ROLLERS
51110 F1,F2 INK FORM 2813 2 1 / 8 11 3 / 8 12 1 / 4
51130* B INK DUCTOR 2818 1 1 / 8 11 12 3 / 4
51151* K TRANSFER ROLL (ink) 8817 1 1 / 8 11 1 / 2 12 3 / 4
MOLLETON WATER SYSTEM ROLLERS
51140 W WATER FORM 2814 1 15 / 16 11 5 / 8 12 1 / 4
51141 W 3M WATER FORM (3M sleeve –– 2 1 / 8 11 5 / 8 12 1 / 4
#21014 not included)
51150* S WATER DUCTOR 2817 31 / 32 11 3 / 8 12 3 / 4
51151* U TRANSFER ROLL (water) 8817 1 1 / 8 11 1 / 2 12 3 / 4
AQUA FLOW WATER SYSTEM ROLLERS
51110 W WATER FORM 2813 2 1 / 8 11 3 / 8 12 1 / 4
51151* U,S WATER DUCTOR & 8817 1 1 / 8 11 1 / 2 12 3 / 4
TRANSFER ROLL
T-51 COLOR HEAD for
MULTILITH MODELS 1360 & 1650
INK SYSTEM ROLLERS
51710 F2 INK FORM 18813 2 1 / 8 13 3 / 8 14 1 / 4
51711 F1 INK FORM 19813 1 15 / 16 13 3 / 8 14 1 / 4
51721* K TRANSFER ROLL (driven) 19815 1 1 / 8 13 1 / 2 16 1 / 8
51730* B INK DUCTOR 18818 1 1 / 8 12 3 / 4 14 3 / 4
MOLLETON WATER SYSTEM ROLLERS
51711 W WATER FORM 19813 1 15 / 16 13 3 / 8 14 1 / 4
51741 W 3M WATER FORM (3M sleeve –– 2 1 / 8 13 3 / 8 14 1 / 4
#21014 not included)
51750* U TRANSFER ROLL 18817 1 1 / 8 13 1 / 2 14 3 / 4
51751* S WATER DUCTOR 18816 15 / 16 13 3 / 8 14 3 / 4
AQUA FLOW WATER SYSTEM ROLLERS
51710 W WATER FORM 18813 2 1 / 8 13 3 / 8 14 1 / 4
51750* U,S WATER DUCTOR & 18817 1 1 / 8 13 1 / 2 14 3 / 4
TRANSFER ROLL
T-51 COLOR HEAD for
MULTILITH MODELS 1960
INK SYSTEM ROLLERS
51719 F1 1st INK FORM 10820 1 15 / 16 18 1 / 2 21 3 / 8
51717 F2 2nd INK FORM 9813 2 1 / 8 18 1 / 2 21 3 / 8
51727* K TRANSFER ROLL (driven) 10815 1 1 / 8 19 17 / 32 21 5 / 8

*Bearings and gears are NOT included.
