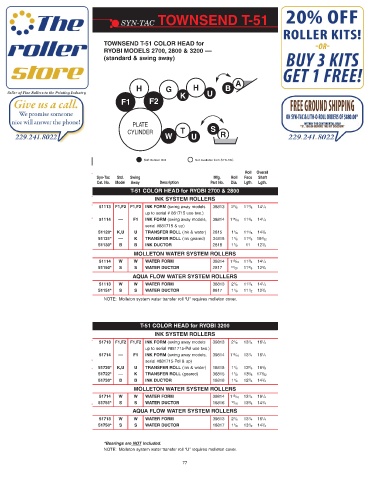

SYN-TAC TOWNSEND T-51

TOWNSEND T-51 COLOR HEAD for
RYOBI MODELS 2700, 2800 & 3200 ––
(standard & swing away)

A
H G H B
K U
F1 F2

PLATE
CYLINDER T S
W U R

Soft Rubber Roll Not Available from SYN-TAC
Roll Overall
Syn-Tac Std. Swing Mfg. Roll Face Shaft
Cat. No. Model Away Description Part No. Dia. Lgth. Lgth.
T-51 COLOR HEAD for RYOBI 2700 & 2800
INK SYSTEM ROLLERS
51113 F1,F2 F1,F2 INK FORM (swing away models 38813 2 1 / 8 11 5 / 8 14 1 / 4
up to serial # 881715 use two.)
51114 –– F1 INK FORM (swing away models, 38814 1 15 / 16 11 3 / 4 14 1 / 4
serial #881715 & up)
51120* K,U U TRANSFER ROLL (ink & water) 2815 1 1 / 8 11 5 / 8 14 3 / 8
51121* –– K TRANSFER ROLL (ink geared) 34815 1 1 / 8 11 5 / 8 15 3 / 32
51130* B B INK DUCTOR 2818 1 1 / 8 11 12 3 / 4
MOLLETON WATER SYSTEM ROLLERS
51114 W W WATER FORM 38814 1 15 / 16 11 3 / 4 14 1 / 4
51150* S S WATER DUCTOR 2817 31 / 32 11 3 / 8 12 3 / 4
AQUA FLOW WATER SYSTEM ROLLERS
51113 W W WATER FORM 38813 2 1 / 8 11 5 / 8 14 1 / 4
51151* S S WATER DUCTOR 8817 1 1 / 8 11 1 / 2 12 3 / 4
NOTE: Molleton system water transfer roll “U” requires molleton cover.

T-51 COLOR HEAD for RYOBI 3200
INK SYSTEM ROLLERS
51713 F1,F2 F1,F2 INK FORM (swing away models 39813 2 1 / 8 13 1 / 4 16 1 / 4
up to serial #881715-Pel use two.)
51714 –– F1 INK FORM (swing away models, 39814 1 15 / 16 13 1 / 4 16 1 / 4
serial #881715-Pel & up)
51720* K,U U TRANSFER ROLL (ink & water) 18815 1 1 / 8 13 5 / 8 16 3 / 8
51722* –– K TRANSFER ROLL (geared) 36815 1 1 / 8 13 5 / 8 17 3 / 32
51730* B B INK DUCTOR 18818 1 1 / 8 12 3 / 4 14 3 / 4
MOLLETON WATER SYSTEM ROLLERS
51714 W W WATER FORM 39814 1 15 / 16 13 1 / 4 16 1 / 4
51751* S S WATER DUCTOR 18816 15 / 16 13 3 / 8 14 3 / 4
AQUA FLOW WATER SYSTEM ROLLERS
51713 W W WATER FORM 39813 2 1 / 8 13 1 / 4 16 1 / 4
51750* S S WATER DUCTOR 18817 1 1 / 8 13 1 / 2 14 3 / 4

*Bearings are NOT included.
NOTE: Molleton system water transfer roll “U” requires molleton cover.

77
