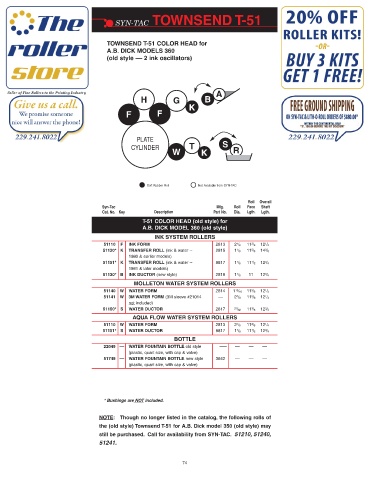

Page 76 - Syn-Tac Roller Catalog #23

SYN-TAC TOWNSEND T-51

TOWNSEND T-51 COLOR HEAD for
A.B. DICK MODELS 360
(old style –– 2 ink oscillators)

A
H G B
K
F F

PLATE
CYLINDER T S
W K R

Soft Rubber Roll Not Available from SYN-TAC

Roll Overall
Syn-Tac Mfg. Roll Face Shaft
Cat. No. Key Description Part No. Dia. Lgth. Lgth.
T-51 COLOR HEAD (old style) for
A.B. DICK MODEL 360 (old style)
INK SYSTEM ROLLERS
51110 F INK FORM 2813 2 1 / 8 11 3 / 8 12 1 / 4
51120* K TRANSFER ROLL (ink & water -- 2815 1 1 / 8 11 5 / 8 14 3 / 8
1980 & earlier models)
51151* K TRANSFER ROLL (ink & water -- 8817 1 1 / 8 11 1 / 2 12 3 / 4
1981 & later models)
51130* B INK DUCTOR (new style) 2818 1 1 / 8 11 12 3 / 4
MOLLETON WATER SYSTEM ROLLERS
51140 W WATER FORM 2814 1 15 / 16 11 5 / 8 12 1 / 4
51141 W 3M WATER FORM (3M sleeve #21014 –– 2 1 / 8 11 5 / 8 12 1 / 4
not included)
51150* S WATER DUCTOR 2817 31 / 32 11 3 / 8 12 3 / 4
AQUA FLOW WATER SYSTEM ROLLERS
51110 W WATER FORM 2813 2 1 / 8 11 3 / 8 12 1 / 4
51151* S WATER DUCTOR 8817 1 1 / 8 11 1 / 2 12 3 / 4
BOTTLE
22049 –– WATER FOUNTAIN BOTTLE old style ––– –– –– ––
(plastic, quart size, with cap & valve)
51749 –– WATER FOUNTAIN BOTTLE new style 3642 –– –– ––
(plastic, quart size, with cap & valve)

* Bushings are NOT included.

NOTE: Though no longer listed in the catalog, the following rolls of
the (old style) Townsend T-51 for A.B. Dick model 350 (old style) may
still be purchased. Call for availability from SYN-TAC. 51210, 51240,
51241.

74
