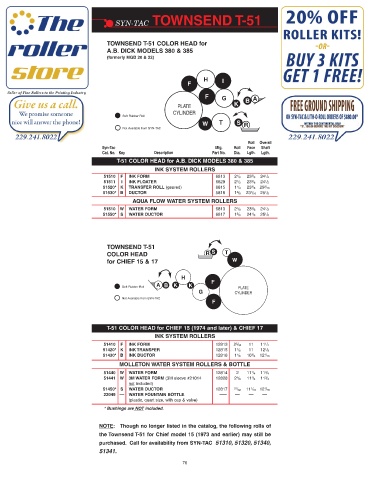

SYN-TAC TOWNSEND T-51

TOWNSEND T-51 COLOR HEAD for
A.B. DICK MODELS 380 & 385
(formerly MGD 20 & 22)

H I
F

F G A
K B
PLATE
CYLINDER
Soft Rubber Roll
W T S R
Not Available from SYN-TAC

Roll Overall
Syn-Tac Mfg. Roll Face Shaft
Cat. No. Key Description Part No. Dia. Lgth. Lgth.
T-51 COLOR HEAD for A.B. DICK MODELS 380 & 385
INK SYSTEM ROLLERS
51510 F INK FORM 6813 2 1 / 8 23 3 / 8 24 1 / 2
51511 I INK FLOATER 6829 2 1 / 2 23 3 / 8 24 1 / 2
51520* K TRANSFER ROLL (geared) 6815 1 1 / 4 23 3 / 8 29 3 / 16
51530* B DUCTOR 5818 1 3 / 8 23 7 / 16 25 1 / 8
AQUA FLOW WATER SYSTEM ROLLERS
51510 W WATER FORM 6813 2 1 / 8 23 3 / 8 24 1 / 2
51550* S WATER DUCTOR 6817 1 3 / 8 24 1 / 8 25 1 / 8

TOWNSEND T-51
COLOR HEAD R S T
for CHIEF 15 & 17 W

H
F
A B K K
Soft Rubber Roll PLATE
G CYLINDER
Not Available from SYN-TAC
F

T-51 COLOR HEAD for CHIEF 15 (1974 and later) & CHIEF 17
INK SYSTEM ROLLERS
51410 F INK FORM 12813 2 5 / 32 11 11 1 / 4
51420* K INK TRANSFER 12815 1 1 / 8 11 12 1 / 8
51430* B INK DUCTOR 12818 1 1 / 8 10 3 / 4 12 1 / 16
MOLLETON WATER SYSTEM ROLLERS & BOTTLE
51440 W WATER FORM 12814 2 11 1 / 4 11 3 / 4
51441 W 3M WATER FORM (3M sleeve #21014 12828 2 1 / 8 11 1 / 4 11 3 / 4
not included)
51450* S WATER DUCTOR 12817 31 / 32 11 1 / 16 12 1 / 16
22049 –– WATER FOUNTAIN BOTTLE ––– –– –– ––
(plastic, quart size, with cap & valve)
* Bushings are NOT included.

NOTE: Though no longer listed in the catalog, the following rolls of
the Townsend T-51 for Chief model 15 (1973 and earlier) may still be
purchased. Call for availability from SYN-TAC 51310, 51320, 51340,
51341.
