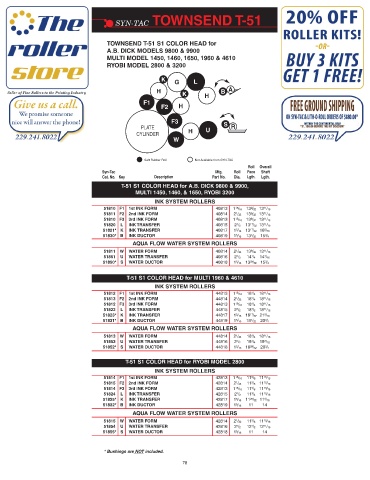

Page 80 - Syn-Tac Roller Catalog #23

SYN-TAC TOWNSEND T-51

TOWNSEND T-51 S1 COLOR HEAD for
A.B. DICK MODELS 9800 & 9900
MULTI MODEL 1450, 1460, 1650, 1960 & 4610
RYOBI MODEL 2800 & 3200

K
G L
H B A
K H
F1
F2 H

F3
PLATE S R
H U
CYLINDER
W

Soft Rubber Roll Not Available from SYN-TAC
Roll Overall
Syn-Tac Mfg. Roll Face Shaft
Cat. No. Key Description Part No. Dia. Lgth. Lgth.
T-51 S1 COLOR HEAD for A.B. DICK 9800 & 9900,
MULTI 1450, 1460, & 1650, RYOBI 3200
INK SYSTEM ROLLERS
51810 F1 1st INK FORM 40813 1 15 / 16 13 9 / 32 13 11 / 16
51811 F2 2nd INK FORM 40814 2 1 / 32 13 9 / 32 13 11 / 16
51810 F3 3rd INK FORM 40813 1 15 / 16 13 9 / 32 13 11 / 16
51820 L INK TRANSFER 40815 2 1 / 2 13 17 / 32 13 11 / 16
51821* K INK TRANSFER 40817 1 5 / 16 13 17 / 32 16 5 / 16
51830* B INK DUCTOR 40819 1 5 / 16 13 1 / 32 15 3 / 4
AQUA FLOW WATER SYSTEM ROLLERS
51811 W WATER FORM 40814 2 1 / 32 13 9 / 32 13 11 / 16
51851 U WATER TRANSFER 40816 2 1 / 2 14 1 / 4 14 7 / 16
51850* S WATER DUCTOR 40818 1 5 / 16 13 29 / 32 15 3 / 4

T-51 S1 COLOR HEAD for MULTI 1960 & 4610
INK SYSTEM ROLLERS
51812 F1 1st INK FORM 44813 1 15 / 16 18 1 / 4 18 11 / 16
51813 F2 2nd INK FORM 44814 2 1 / 32 18 1 / 4 18 11 / 16
51812 F3 3rd INK FORM 44813 1 15 / 16 18 1 / 4 18 11 / 16
51822 L INK TRANSFER 44815 2 1 / 2 18 1 / 2 18 11 / 16
51823* K INK TRANSFER 44817 1 5 / 16 18 17 / 32 21 5 / 16
51831* B INK DUCTOR 44819 1 5 / 16 18 1 / 32 20 3 / 4
AQUA FLOW WATER SYSTEM ROLLERS
51813 W WATER FORM 44814 2 1 / 32 18 1 / 4 18 11 / 16
51853 U WATER TRANSFER 44816 2 1 / 2 19 1 / 4 19 7 / 16
51852* S WATER DUCTOR 44818 1 5 / 16 18 29 / 32 20 3 / 4

T-51 S1 COLOR HEAD for RYOBI MODEL 2800
INK SYSTEM ROLLERS
51814 F1 1st INK FORM 42813 1 15 / 16 11 5 / 8 11 15 / 16
51815 F2 2nd INK FORM 42814 2 1 / 32 11 5 / 8 11 15 / 16
51814 F3 3rd INK FORM 42813 1 15 / 16 11 5 / 8 11 15 / 16
51824 L INK TRANSFER 42815 2 1 / 2 11 3 / 4 11 15 / 16
51825* K INK TRANSFER 42817 1 5 / 16 11 25 / 32 11 9 / 16
51832* B INK DUCTOR 42819 1 5 / 16 11 14
AQUA FLOW WATER SYSTEM ROLLERS
51815 W WATER FORM 42814 2 1 / 32 11 5 / 8 11 15 / 16
51854 U WATER TRANSFER 42816 2 1 / 2 12 1 / 2 12 11 / 16
51855* S WATER DUCTOR 42818 1 5 / 16 11 14

* Bushings are NOT included.
