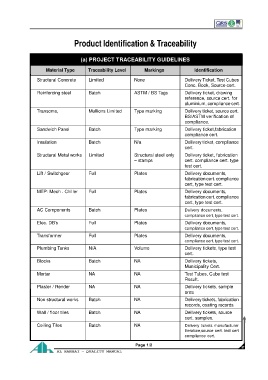

Product Identification & Traceability

(a) PROJECT TRACEABILITY GUIDELINES

Material Type Traceability Level Markings Identification

Structural Concrete Limited None Delivery Ticket, Test Cubes
Conc. Book, Source cert.
Reinforcing steel Batch ASTM / BS Tags Delivery ticket, drawing
reference, source cert. for
aluminium, compliance cert.
Transoms, Mullions Limited Type marking Delivery ticket, source cert.
BS/ASTM verification of
compliance.
Sandwich Panel Batch Type marking Delivery ticket,fabrication
compliance cert.
Insulation Batch N/a Delivery ticket, compliance
cert.
Structural Metal works Limited Structural steel only Delivery ticket, fabrication
– stamps cert. compliance cert. type
test cert.
Lift / Switchgear Full Plates Delivery documents,
fabrication cert. compliance
cert, type test cert.
MEP: Mech . Chiller Full Plates Delivery documents,
fabrication cert. compliance
cert, type test cert.
AC Components Batch Plates Delivery documents,
compliance cert, type test cert.
Elec. DB’s Full Plates Delivery documents,
compliance cert, type test cert.
Transformer Full Plates Delivery documents,
compliance cert, type test cert.
Plumbing Tanks N/A Volume Delivery tickets, type test
cert.
Blocks Batch NA Delivery tickets,
Municipality Cert.
Mortar NA NA Test Tubes, Cube test
Result.
Plaster / Render NA NA Delivery tickets, sample
area
Non structural works Batch NA Delivery tickets, fabrication
records, coating records
Wall / floor tiles Batch NA Delivery tickets, source
cert. samples.
Ceiling Tiles Batch NA Delivery tickets manufacturer
literature,source cert. test cert
compliance cert.

Page 1/2
