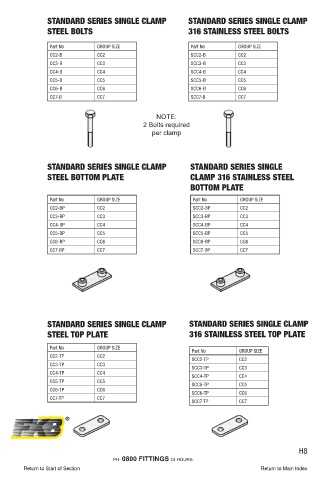

Page 146 - Fluid Fitting 2018_extended

STANDARD SERIES SINGLE CLAMP STANDARD SERIES SINGLE CLAMP
STEEL BOLTS 316 STAINLESS STEEL BOLTS

Part No GROUP SIZE Part No GROUP SIZE
CC2-B CC2 SCC2-B CC2
CC3-B CC3 SCC3-B CC3
CC4-B CC4 SCC4-B CC4
CC5-B CC5 SCC5-B CC5
CC6-B CC6 SCC6-B CC6
CC7-B CC7 SCC7-B CC7

NOTE:
2 Bolts required
per clamp

STANDARD SERIES SINGLE CLAMP STANDARD SERIES SINGLE
STEEL BOTTOM PLATE CLAMP 316 STAINLESS STEEL
BOTTOM PLATE

Part No GROUP SIZE Part No GROUP SIZE
CC2-BP CC2 SCC2-BP CC2
CC3-BP CC3 SCC3-BP CC3
CC4-BP CC4 SCC4-BP CC4
CC5-BP CC5 SCC5-BP CC5
CC6-BP CC6 SCC6-BP CC6
CC7-BP CC7 SCC7-BP CC7

STANDARD SERIES SINGLE CLAMP STANDARD SERIES SINGLE CLAMP
STEEL TOP PLATE 316 STAINLESS STEEL TOP PLATE

Part No GROUP SIZE
Part No GROUP SIZE
CC2-TP CC2
SCC2-TP CC2
CC3-TP CC3
SCC3-TP CC3
CC4-TP CC4
SCC4-TP CC4
CC5-TP CC5
SCC5-TP CC5
CC6-TP CC6
SCC6-TP CC6
CC7-TP CC7
SCC7-TP CC7

H8
