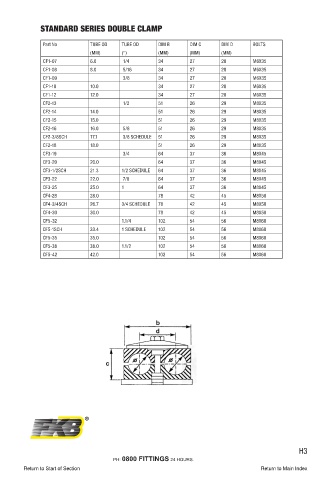

STANDARD SERIES DOUBLE CLAMP

Part No TUBE OD TUBE OD DIM B DIM C DIM D BOLTS
(MM) (“) (MM) (MM) (MM)
CF1-07 6.0 1/4 34 27 20 M6X35
CF1-08 8.0 5/16 34 27 20 M6X35
CF1-09 3/8 34 27 20 M6X35
CF1-10 10.0 34 27 20 M6X35
CF1-12 12.0 34 27 20 M6X35
CF2-13 1/2 51 26 29 M8X35
CF2-14 14.0 51 26 29 M8X35
CF2-15 15.0 51 26 29 M8X35
CF2-16 16.0 5/8 51 26 29 M8X35
CF2-3/8SCH 17.1 3/8 SCHEDULE 51 26 29 M8X35
CF2-18 18.0 51 26 29 M8X35
CF3-19 3/4 64 37 36 M8X45
CF3-20 20.0 64 37 36 M8X45
CF3-1/2SCH 21.3 1/2 SCHEDULE 64 37 36 M8X45
CF3-22 22.0 7/8 64 37 36 M8X45
CF3-25 25.0 1 64 37 36 M8X45
CF4-28 28.0 78 42 45 M8X50
CF4-3/4SCH 26.7 3/4 SCHEDULE 78 42 45 M8X50
CF4-30 30.0 78 42 45 M8X50
CF5-32 1.1/4 102 54 56 M8X60
CF5-1SCH 33.4 1 SCHEDULE 102 54 56 M8X60
CF5-35 35.0 102 54 56 M8X60
CF5-38 38.0 1.1/2 102 54 56 M8X60
CF5-42 42.0 102 54 56 M8X60

H3
