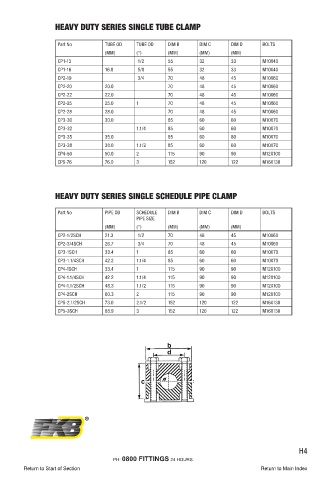

HEAVY DUTY SERIES SINGLE TUBE CLAMP

Part No TUBE OD TUBE OD DIM B DIM C DIM D BOLTS
(MM) (“) (MM) (MM) (MM)
CP1-13 1/2 55 32 33 M10X40
CP1-16 16.0 5/8 55 32 33 M10X40
CP2-19 3/4 70 48 45 M10X60
CP2-20 20.0 70 48 45 M10X60
CP2-22 22.0 70 48 45 M10X60
CP2-25 25.0 1 70 48 45 M10X60
CP2-28 28.0 70 48 45 M10X60
CP3-30 30.0 85 60 60 M10X70
CP3-32 1.1/4 85 60 60 M10X70
CP3-35 35.0 85 60 60 M10X70
CP3-38 38.0 1.1/2 85 60 60 M10X70
CP4-50 50.0 2 115 90 90 M12X100
CP5-76 76.0 3 152 120 122 M16X130

HEAVY DUTY SERIES SINGLE SCHEDULE PIPE CLAMP

Part No PIPE OD SCHEDULE DIM B DIM C DIM D BOLTS
PIPE SIZE
(MM) (“) (MM) (MM) (MM)
CP2-1/2SCH 21.3 1/2 70 48 45 M10X60
CP2-3/4SCH 26.7 3/4 70 48 45 M10X60
CP3-1SCH 33.4 1 85 60 60 M10X70
CP3-1.1/4SCH 42.2 1.1/4 85 60 60 M10X70
CP4-1SCH 33.4 1 115 90 90 M12X100
CP4-1.1/4SCH 42.2 1.1/4 115 90 90 M12X100
CP4-1.1/2SCH 48.3 1.1/2 115 90 90 M12X100
CP4-2SCH 60.3 2 115 90 90 M12X100
CP5-2.1/2SCH 73.0 2.1/2 152 120 122 M16X130
CP5-3SCH 88.9 3 152 120 122 M16X130

H4
