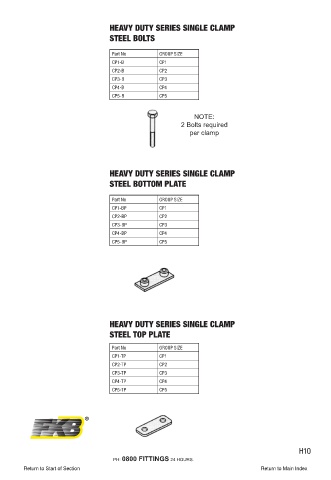

HEAVY DUTY SERIES SINGLE CLAMP
STEEL BOLTS

Part No GROUP SIZE
CP1-B CP1
CP2-B CP2
CP3-B CP3
CP4-B CP4
CP5-B CP5

NOTE:
2 Bolts required
per clamp

HEAVY DUTY SERIES SINGLE CLAMP
STEEL BOTTOM PLATE

Part No GROUP SIZE
CP1-BP CP1
CP2-BP CP2
CP3-BP CP3
CP4-BP CP4
CP5-BP CP5

HEAVY DUTY SERIES SINGLE CLAMP
STEEL TOP PLATE

Part No GROUP SIZE
CP1-TP CP1
CP2-TP CP2
CP3-TP CP3
CP4-TP CP4
CP5-TP CP5

H10
