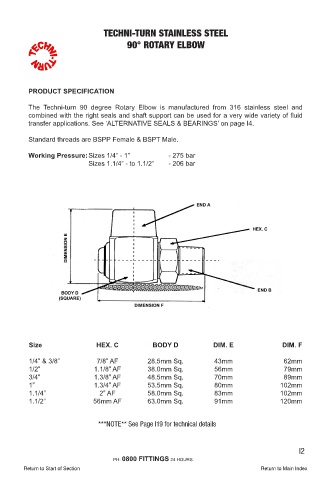

TECHNI-TURN STAINLESS STEEL
90° ROTARY ELBOW
PRODUCT SPECIFICATION
The Techni-turn 90 degree Rotary Elbow is manufactured from 316 stainless steel and
combined with the right seals and shaft support can be used for a very wide variety of fluid
transfer applications. See ‘ALTERNATIVE SEALS & BEARINGS’ on page I4.
Standard threads are BSPP Female & BSPT Male.
Working Pressure: Sizes 1/4” - 1” - 275 bar
Sizes 1.1/4” - to 1.1/2” - 206 bar
Size HEX. C BODY D DIM. E DIM. F
1/4” & 3/8” 7/8” AF 28.5mm Sq. 43mm 62mm
1/2” 1.1/8” AF 38.0mm Sq. 56mm 79mm
3/4” 1.3/8” AF 48.5mm Sq. 70mm 89mm
1” 1.3/4” AF 53.5mm Sq. 80mm 102mm
1.1/4” 2” AF 58.0mm Sq. 83mm 102mm
1.1/2” 56mm AF 63.0mm Sq. 91mm 120mm
***NOTE** See Page I19 for technical details
