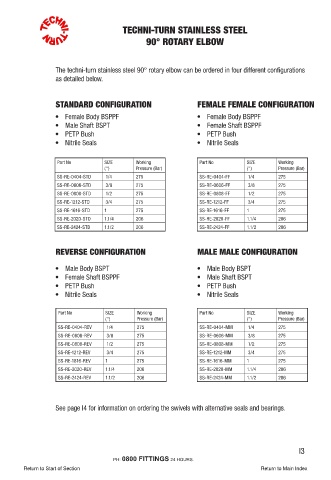

TECHNI-TURN STAINLESS STEEL
90° ROTARY ELBOW

The techni-turn stainless steel 90° rotary elbow can be ordered in four different configurations
as detailed below.

STANDARD CONFIGURATION FEMALE FEMALE CONFIGURATION

• Female Body BSPPF • Female Body BSPPF
• Male Shaft BSPT • Female Shaft BSPPF
• PETP Bush • PETP Bush
• Nitrile Seals • Nitrile Seals

Part No SIZE Working Part No SIZE Working
(“) Pressure (Bar) (“) Pressure (Bar)
SS-RE-0404-STD 1/4 275 SS-RE-0404-FF 1/4 275
SS-RE-0606-STD 3/8 275 SS-RE-0606-FF 3/8 275
SS-RE-0808-STD 1/2 275 SS-RE-0808-FF 1/2 275
SS-RE-1212-STD 3/4 275 SS-RE-1212-FF 3/4 275
SS-RE-1616-STD 1 275 SS-RE-1616-FF 1 275
SS-RE-2020-STD 1.1/4 206 SS-RE-2020-FF 1.1/4 206
SS-RE-2424-STD 1.1/2 206 SS-RE-2424-FF 1.1/2 206

REVERSE CONFIGURATION MALE MALE CONFIGURATION

• Male Body BSPT • Male Body BSPT
• Female Shaft BSPPF • Male Shaft BSPT
• PETP Bush • PETP Bush
• Nitrile Seals • Nitrile Seals

Part No SIZE Working Part No SIZE Working
(“) Pressure (Bar) (“) Pressure (Bar)
SS-RE-0404-REV 1/4 275 SS-RE-0404-MM 1/4 275
SS-RE-0606-REV 3/8 275 SS-RE-0606-MM 3/8 275
SS-RE-0808-REV 1/2 275 SS-RE-0808-MM 1/2 275
SS-RE-1212-REV 3/4 275 SS-RE-1212-MM 3/4 275
SS-RE-1616-REV 1 275 SS-RE-1616-MM 1 275
SS-RE-2020-REV 1.1/4 206 SS-RE-2020-MM 1.1/4 206
SS-RE-2424-REV 1.1/2 206 SS-RE-2424-MM 1.1/2 206

See page I4 for information on ordering the swivels with alternative seals and bearings.
