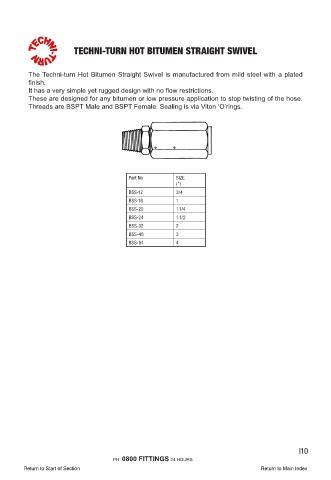

TECHNI-TURN HOT BITUMEN STRAIGHT SWIVEL

The Techni-turn Hot Bitumen Straight Swivel is manufactured from mild steel with a plated
finish.
It has a very simple yet rugged design with no flow restrictions.
These are designed for any bitumen or low pressure application to stop twisting of the hose.
Threads are BSPT Male and BSPT Female. Sealing is via Viton ‘O’rings.

Part No SIZE
(“)
BSS-12 3/4
BSS-16 1
BSS-20 1.1/4
BSS-24 1.1/2
BSS-32 2
BSS-48 3
BSS-64 4

I10
