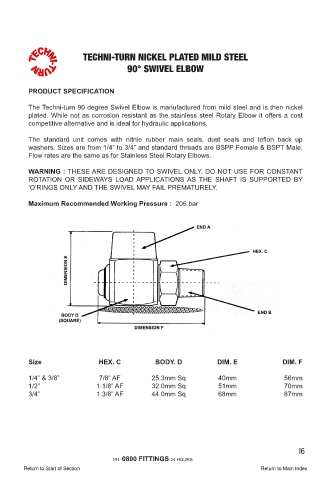

Page 156 - Fluid Fitting 2018_extended

TECHNI-TURN NICKEL PLATED MILD STEEL
90° SWIVEL ELBOW

PRODUCT SPECIFICATION

The Techni-turn 90 degree Swivel Elbow is manufactured from mild steel and is then nickel
plated. While not as corrosion resistant as the stainless steel Rotary Elbow it offers a cost
competitive alternative and is ideal for hydraulic applications.

The standard unit comes with nitrile rubber main seals, dust seals and teflon back up
washers. Sizes are from 1/4” to 3/4” and standard threads are BSPP Female & BSPT Male.
Flow rates are the same as for Stainless Steel Rotary Elbows.

WARNING : THESE ARE DESIGNED TO SWIVEL ONLY. DO NOT USE FOR CONSTANT
ROTATION OR SIDEWAYS LOAD APPLICATIONS AS THE SHAFT IS SUPPORTED BY
‘O’RINGS ONLY AND THE SWIVEL MAY FAIL PREMATURELY.

Maximum Recommended Working Pressure : 206 bar

Size HEX. C BODY. D DIM. E DIM. F

1/4” & 3/8” 7/8” AF 25.3mm Sq 40mm 56mm
1/2” 1.1/8” AF 32.0mm Sq 51mm 70mm
3/4” 1.3/8” AF 44.0mm Sq 68mm 87mm
