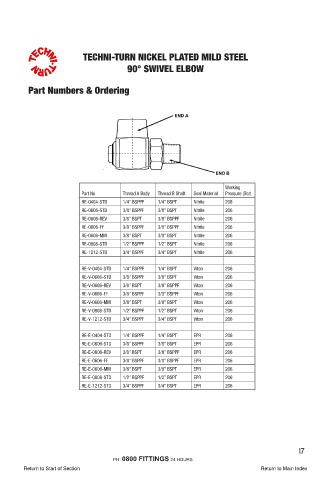

Page 157 - Fluid Fitting 2018_extended

TECHNI-TURN NICKEL PLATED MILD STEEL
90° SWIVEL ELBOW

Part Numbers & Ordering

Working
Part No Thread A Body Thread B Shaft Seal Material Pressure (Bar)
RE-0404-STD 1/4” BSPPF 1/4” BSPT Nitrile 206
RE-0606-STD 3/8” BSPPF 3/8” BSPT Nitrile 206
RE-0606-REV 3/8” BSPT 3/8” BSPPF Nitrile 206
RE-0606-FF 3/8” BSPPF 3/8” BSPPF Nitrile 206
RE-0606-MM 3/8” BSPT 3/8” BSPT Nitrile 206
RE-0808-STD 1/2” BSPPF 1/2” BSPT Nitrile 206
RE-1212-STD 3/4” BSPPF 3/4” BSPT Nitrile 206

RE-V-0404-STD 1/4” BSPPF 1/4” BSPT Viton 206
RE-V-0606-STD 3/8” BSPPF 3/8” BSPT Viton 206
RE-V-0606-REV 3/8” BSPT 3/8” BSPPF Viton 206
RE-V-0606-FF 3/8” BSPPF 3/8” BSPPF Viton 206
RE-V-0606-MM 3/8” BSPT 3/8” BSPT Viton 206
RE-V-0808-STD 1/2” BSPPF 1/2” BSPT Viton 206
RE-V-1212-STD 3/4” BSPPF 3/4” BSPT Viton 206

RE-E-0404-STD 1/4” BSPPF 1/4” BSPT EPR 206
RE-E-0606-STD 3/8” BSPPF 3/8” BSPT EPR 206
RE-E-0606-REV 3/8” BSPT 3/8” BSPPF EPR 206
RE-E-0606-FF 3/8” BSPPF 3/8” BSPPF EPR 206
RE-E-0606-MM 3/8” BSPT 3/8” BSPT EPR 206
RE-E-0808-STD 1/2” BSPPF 1/2” BSPT EPR 206
RE-E-1212-STD 3/4” BSPPF 3/4” BSPT EPR 206

I7
