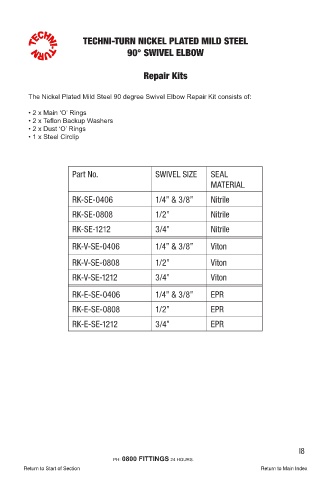

TECHNI-TURN NICKEL PLATED MILD STEEL

90° SWIVEL ELBOW

Repair Kits

The Nickel Plated Mild Steel 90 degree Swivel Elbow Repair Kit consists of:

• 2 x Main ‘O’ Rings
• 2 x Teflon Backup Washers
• 2 x Dust ‘O’ Rings
• 1 x Steel Circlip

Part No. SWIVEL SIZE SEAL

MATERIAL

RK-SE-0406 1/4” & 3/8” Nitrile

RK-SE-0808 1/2” Nitrile

RK-SE-1212 3/4” Nitrile

RK-V-SE-0406 1/4” & 3/8” Viton

RK-V-SE-0808 1/2” Viton

RK-V-SE-1212 3/4” Viton

RK-E-SE-0406 1/4” & 3/8” EPR

RK-E-SE-0808 1/2” EPR

RK-E-SE-1212 3/4” EPR

I8
