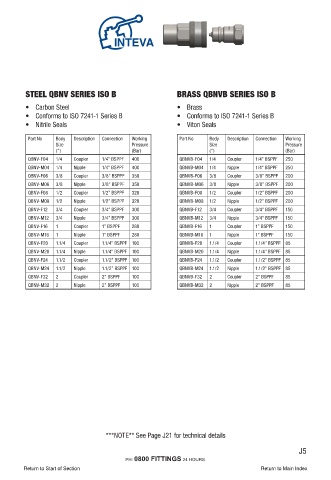

STEEL QBNV SERIES ISO B BRASS QBNVB SERIES ISO B

• Carbon Steel • Brass
• Conforms to ISO 7241-1 Series B • Conforms to ISO 7241-1 Series B
• Nitrile Seals • Viton Seals

Part No Body Description Connection Working Part No Body Description Connection Working
Size Pressure Size Pressure
(“) (Bar) (“) (Bar)
QBNV-F04 1/4 Coupler 1/4” BSPPF 400 QBNVB-F04 1/4 Coupler 1/4” BSPPF 250
QBNV-M04 1/4 Nipple 1/4” BSPPF 400 QBNVB-M04 1/4 Nipple 1/4” BSPPF 250
QBNV-F06 3/8 Coupler 3/8” BSPPF 350 QBNVB-F06 3/8 Coupler 3/8” BSPPF 200
QBNV-M06 3/8 Nipple 3/8” BSPPF 350 QBNVB-M06 3/8 Nipple 3/8” BSPPF 200
QBNV-F08 1/2 Coupler 1/2” BSPPF 320 QBNVB-F08 1/2 Coupler 1/2” BSPPF 200
QBNV-M08 1/2 Nipple 1/2” BSPPF 320 QBNVB-M08 1/2 Nipple 1/2” BSPPF 200
QBNV-F12 3/4 Coupler 3/4” BSPPF 300 QBNVB-F12 3/4 Coupler 3/4” BSPPF 150
QBNV-M12 3/4 Nipple 3/4” BSPPF 300 QBNVB-M12 3/4 Nipple 3/4” BSPPF 150
QBNV-F16 1 Coupler 1” BSPPF 280 QBNVB-F16 1 Coupler 1” BSPPF 150
QBNV-M16 1 Nipple 1” BSPPF 280 QBNVB-M16 1 Nipple 1” BSPPF 150
QBNV-F20 1.1/4 Coupler 1.1/4” BSPPF 100 QBNVB-F20 1.1/4 Coupler 1.1/4” BSPPF 85
QBNV-M20 1.1/4 Nipple 1.1/4” BSPPF 100 QBNVB-M20 1.1/4 Nipple 1.1/4” BSPPF 85
QBNV-F24 1.1/2 Coupler 1.1/2” BSPPF 100 QBNVB-F24 1.1/2 Coupler 1.1/2” BSPPF 85
QBNV-M24 1.1/2 Nipple 1.1/2” BSPPF 100 QBNVB-M24 1.1/2 Nipple 1.1/2” BSPPF 85
QBNV-F32 2 Coupler 2” BSPPF 100 QBNVB-F32 2 Coupler 2” BSPPF 85
QBNV-M32 2 Nipple 2” BSPPF 100 QBNVB-M32 2 Nipple 2” BSPPF 85

***NOTE** See Page J21 for technical details
