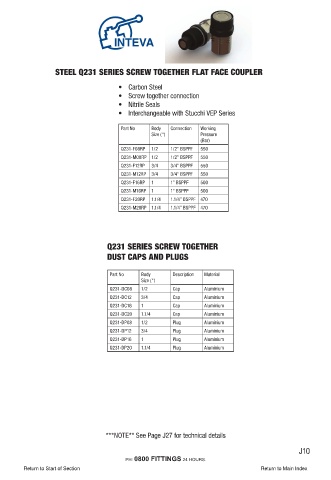

Page 182 - Fluid Fitting 2018_extended

STEEL Q231 SERIES SCREW TOGETHER FLAT FACE COUPLER

• Carbon Steel
• Screw together connection
• Nitrile Seals
• Interchangeable with Stucchi VEP Series

Part No Body Connection Working
Size (“) Pressure
(Bar)
Q231-F08RP 1/2 1/2” BSPPF 550
Q231-M08RP 1/2 1/2” BSPPF 550
Q231-F12RP 3/4 3/4” BSPPF 550
Q231-M12RP 3/4 3/4” BSPPF 550
Q231-F16RP 1 1” BSPPF 500
Q231-M16RP 1 1” BSPPF 500
Q231-F20RP 1.1/4 1.1/4” BSPPF 470
Q231-M20RP 1.1/4 1.1/4” BSPPF 470

Q231 SERIES SCREW TOGETHER

DUST CAPS AND PLUGS

Part No Body Description Material
Size (“)
Q231-DC08 1/2 Cap Aluminium
Q231-DC12 3/4 Cap Aluminium
Q231-DC16 1 Cap Aluminium
Q231-DC20 1.1/4 Cap Aluminium
Q231-DP08 1/2 Plug Aluminium
Q231-DP12 3/4 Plug Aluminium
Q231-DP16 1 Plug Aluminium
Q231-DP20 1.1/4 Plug Aluminium

***NOTE** See Page J27 for technical details
