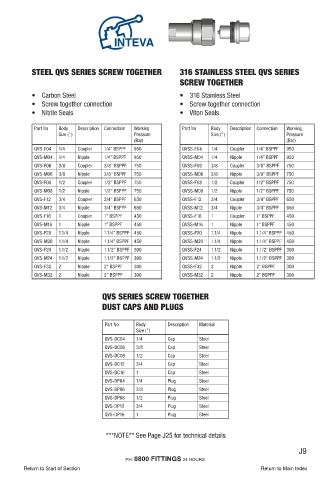

Page 181 - Fluid Fitting 2018_extended

STEEL QVS SERIES SCREW TOGETHER 316 STAINLESS STEEL QVS SERIES

SCREW TOGETHER

• Carbon Steel • 316 Stainless Steel
• Screw together connection • Screw together connection
• Nitrile Seals • Viton Seals

Part No Body Description Connection Working Part No Body Description Connection Working
Size (“) Pressure Size (“) Pressure
(Bar) (Bar)
QVS-F04 1/4 Coupler 1/4” BSPPF 950 QVSS-F04 1/4 Coupler 1/4” BSPPF 950
QVS-M04 1/4 Nipple 1/4” BSPPF 950 QVSS-M04 1/4 Nipple 1/4” BSPPF 950
QVS-F06 3/8 Coupler 3/8” BSPPF 750 QVSS-F06 3/8 Coupler 3/8” BSPPF 750
QVS-M06 3/8 Nipple 3/8” BSPPF 750 QVSS-M06 3/8 Nipple 3/8” BSPPF 750
QVS-F08 1/2 Coupler 1/2” BSPPF 750 QVSS-F08 1/2 Coupler 1/2” BSPPF 750
QVS-M08 1/2 Nipple 1/2” BSPPF 750 QVSS-M08 1/2 Nipple 1/2” BSPPF 750
QVS-F12 3/4 Coupler 3/4” BSPPF 650 QVSS-F12 3/4 Coupler 3/4” BSPPF 650
QVS-M12 3/4 Nipple 3/4” BSPPF 650 QVSS-M12 3/4 Nipple 3/4” BSPPF 650
QVS-F16 1 Coupler 1” BSPPF 450 QVSS-F16 1 Coupler 1” BSPPF 450
QVS-M16 1 Nipple 1” BSPPF 450 QVSS-M16 1 Nipple 1” BSPPF 450
QVS-F20 1.1/4 Nipple 1.1/4” BSPPF 450 QVSS-F20 1.1/4 Nipple 1.1/4” BSPPF 450
QVS-M20 1.1/4 Nipple 1.1/4” BSPPF 450 QVSS-M20 1.1/4 Nipple 1.1/4” BSPPF 450
QVS-F24 1.1/2 Nipple 1.1/2” BSPPF 300 QVSS-F24 1.1/2 Nipple 1.1/2” BSPPF 300
QVS-M24 1.1/2 Nipple 1.1/2” BSPPF 300 QVSS-M24 1.1/2 Nipple 1.1/2” BSPPF 300
QVS-F32 2 Nipple 2” BSPPF 300 QVSS-F32 2 Nipple 2” BSPPF 300
QVS-M32 2 Nipple 2” BSPPF 300 QVSS-M32 2 Nipple 2” BSPPF 300

QVS SERIES SCREW TOGETHER
DUST CAPS AND PLUGS

Part No Body Description Material
Size (“)
QVS-DC04 1/4 Cap Steel
QVS-DC06 3/8 Cap Steel
QVS-DC08 1/2 Cap Steel
QVS-DC12 3/4 Cap Steel
QVS-DC16 1 Cap Steel
QVS-DP04 1/4 Plug Steel
QVS-DP06 3/8 Plug Steel
QVS-DP08 1/2 Plug Steel
QVS-DP12 3/4 Plug Steel
QVS-DP16 1 Plug Steel

***NOTE** See Page J25 for technical details

J9
