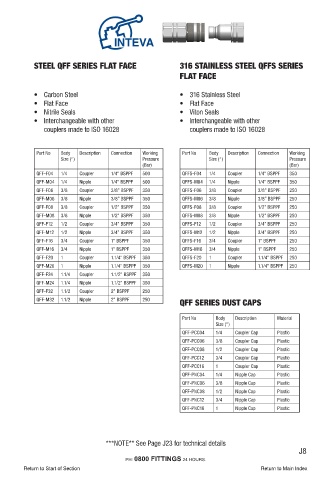

Page 180 - Fluid Fitting 2018_extended

STEEL QFF SERIES FLAT FACE 316 STAINLESS STEEL QFFS SERIES
FLAT FACE

• Carbon Steel • 316 Stainless Steel
• Flat Face • Flat Face
• Nitrile Seals • Viton Seals
• Interchangeable with other • Interchangeable with other
couplers made to ISO 16028 couplers made to ISO 16028

Part No Body Description Connection Working Part No Body Description Connection Working
Size (“) Pressure Size (“) Pressure
(Bar) (Bar)
QFF-F04 1/4 Coupler 1/4” BSPPF 500 QFFS-F04 1/4 Coupler 1/4” BSPPF 350
QFF-M04 1/4 Nipple 1/4” BSPPF 500 QFFS-M04 1/4 Nipple 1/4” BSPPF 350
QFF-F06 3/8 Coupler 3/8” BSPPF 350 QFFS-F06 3/8 Coupler 3/8” BSPPF 250
QFF-M06 3/8 Nipple 3/8” BSPPF 350 QFFS-M06 3/8 Nipple 3/8” BSPPF 250
QFF-F08 3/8 Coupler 1/2” BSPPF 350 QFFS-F08 3/8 Coupler 1/2” BSPPF 250
QFF-M08 3/8 Nipple 1/2” BSPPF 350 QFFS-M08 3/8 Nipple 1/2” BSPPF 250
QFF-F12 1/2 Coupler 3/4” BSPPF 350 QFFS-F12 1/2 Coupler 3/4” BSPPF 250
QFF-M12 1/2 Nipple 3/4” BSPPF 350 QFFS-M12 1/2 Nipple 3/4” BSPPF 250
QFF-F16 3/4 Coupler 1” BSPPF 350 QFFS-F16 3/4 Coupler 1” BSPPF 250
QFF-M16 3/4 Nipple 1” BSPPF 350 QFFS-M16 3/4 Nipple 1” BSPPF 250
QFF-F20 1 Coupler 1.1/4” BSPPF 350 QFFS-F20 1 Coupler 1.1/4” BSPPF 250
QFF-M20 1 Nipple 1.1/4” BSPPF 350 QFFS-M20 1 Nipple 1.1/4” BSPPF 250
QFF-F24 1.1/4 Coupler 1.1/2” BSPPF 350
QFF-M24 1.1/4 Nipple 1.1/2” BSPPF 350
QFF-F32 1.1/2 Coupler 2” BSPPF 250
QFF-M32 1.1/2 Nipple 2” BSPPF 250
QFF SERIES DUST CAPS

Part No Body Description Material
Size (“)
QFF-PCC04 1/4 Coupler Cap Plastic
QFF-PCC06 3/8 Coupler Cap Plastic
QFF-PCC08 1/2 Coupler Cap Plastic
QFF-PCC12 3/4 Coupler Cap Plastic
QFF-PCC16 1 Coupler Cap Plastic
QFF-PNC04 1/4 Nipple Cap Plastic
QFF-PNC06 3/8 Nipple Cap Plastic
QFF-PNC08 1/2 Nipple Cap Plastic
QFF-PNC12 3/4 Nipple Cap Plastic
QFF-PNC16 1 Nipple Cap Plastic

***NOTE** See Page J23 for technical details
J8
