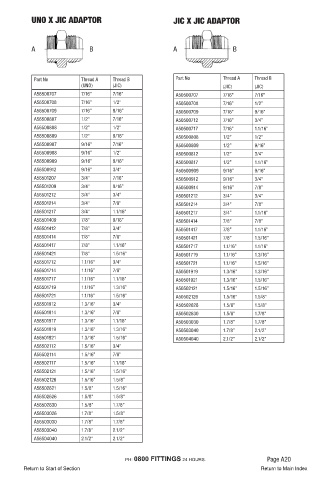

Page 24 - Fluid Fitting 2018_extended

UNO X JIC ADAPTOR JIC X JIC ADAPTOR

A B A B

Part No Thread A Thread B Part No Thread A Thread B
(UNO) (JIC) (JIC) (JIC)
A56500707 7/16” 7/16” A50500707 7/16” 7/16”
A56500708 7/16” 1/2” A50500708 7/16” 1/2”
A56500709 7/16” 9/16” A50500709 7/16” 9/16”
A56500807 1/2” 7/16” A50500712 7/16” 3/4”
A56500808 1/2” 1/2” A50500717 7/16” 1.1/16”
A56500809 1/2” 9/16” A50500808 1/2” 1/2”
A56500907 9/16” 7/16” A50500809 1/2” 9/16”
A56500908 9/16” 1/2” A50500812 1/2” 3/4”
A56500909 9/16” 9/16” A50500817 1/2” 1.1/16”
A56500912 9/16” 3/4” A50500909 9/16” 9/16”
A56501207 3/4” 7/16” A50500912 9/16” 3/4”
A56501209 3/4” 9/16” A50500914 9/16” 7/8”
A56501212 3/4” 3/4” A50501212 3/4” 3/4”
A56501214 3/4” 7/8” A50501214 3/4” 7/8”
A56501217 3/4” 1.1/16” A50501217 3/4” 1.1/16”
A56501409 7/8” 9/16” A50501414 7/8” 7/8”
A56501412 7/8” 3/4” A50501417 7/8” 1.1/16”
A56501414 7/8” 7/8” A50501421 7/8” 1.5/16”
A56501417 7/8” 1.1/16” A50501717 1.1/16” 1.1/16”
A56501421 7/8” 1.5/16” A50501719 1.1/16” 1.3/16”
A56501712 1.1/16” 3/4” A50501721 1.1/16” 1.5/16”
A56501714 1.1/16” 7/8” A50501919 1.3/16” 1.3/16”
A56501717 1.1/16” 1.1/16” A50501921 1.3/16” 1.5/16”
A56501719 1.1/16” 1.3/16” A50502121 1.5/16” 1.5/16”
A56501721 1.1/16” 1.5/16” A50502126 1.5/16” 1.5/8”
A56501912 1.3/16” 3/4” A50502626 1.5/8” 1.5/8”
A56501914 1.3/16” 7/8” A50502630 1.5/8” 1.7/8”
A56501917 1.3/16” 1.1/16” A50503030 1.7/8” 1.7/8”
A56501919 1.3/16” 1.3/16” A50503040 1.7/8” 2.1/2”
A56501921 1.3/16” 1.5/16” A50504040 2.1/2” 2.1/2”
A56502112 1.5/16” 3/4”
A56502114 1.5/16” 7/8”
A56502117 1.5/16” 1.1/16”
A56502121 1.5/16” 1.5/16”
A56502126 1.5/16” 1.5/8”
A56502621 1.5/8” 1.5/16”
A56502626 1.5/8” 1.5/8”
A56502630 1.5/8” 1.7/8”
A56503026 1.7/8” 1.5/8”
A56503030 1.7/8” 1.7/8”
A56503040 1.7/8” 2.1/2”
A56504040 2.1/2” 2.1/2”

PH: 0800 FITTINGS 24 HOURS. Page A20
