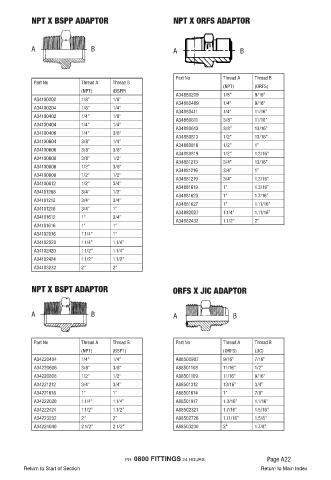

Page 26 - Fluid Fitting 2018_extended

NPT X BSPP ADAPTOR NPT X ORFS ADAPTOR

A B A B

Part No Thread A Thread B
Part No Thread A Thread B
(NPT) (ORFS)
(NPT) (BSPP)
A34880209 1/8” 9/16”
A34100202 1/8” 1/8”
A34880409 1/4” 9/16”
A34100204 1/8” 1/4”
A34880411 1/4” 11/16”
A34100402 1/4” 1/8”
A34880611 3/8” 11/16”
A34100404 1/4” 1/4”
A34880613 3/8” 13/16”
A34100406 1/4” 3/8”
A34880813 1/2” 13/16”
A34100604 3/8” 1/4”
A34880816 1/2” 1”
A34100606 3/8” 3/8”
A34880819 1/2” 1.3/16”
A34100608 3/8” 1/2”
A34881213 3/4” 13/16”
A34100806 1/2” 3/8”
A34881216 3/4” 1”
A34100808 1/2” 1/2”
A34881219 3/4” 1.3/16”
A34100812 1/2” 3/4”
A34881619 1” 1.3/16”
A34101208 3/4” 1/2”
A34881623 1” 1.7/16”
A34101212 3/4” 3/4”
A34881627 1” 1.11/16”
A34101216 3/4” 1”
A34882027 1.1/4” 1.11/16”
A34101612 1” 3/4”
A34882432 1.1/2” 2”
A34101616 1” 1”
A34102016 1.1/4” 1”
A34102020 1.1/4” 1.1/4”
A34102420 1.1/2” 1.1/4”
A34102424 1.1/2” 1.1/2”
A34103232 2” 2”

NPT X BSPT ADAPTOR ORFS X JIC ADAPTOR

A B A B

Part No Thread A Thread B Part No Thread A Thread B
(NPT) (BSPT) (ORFS) (JIC)
A34220404 1/4” 1/4” A88500907 9/16” 7/16”
A34220606 3/8” 3/8” A88501108 11/16” 1/2”
A34220808 1/2” 1/2” A88501109 11/16” 9/16”
A34221212 3/4” 3/4” A88501312 13/16” 3/4”
A34221616 1” 1” A88501614 1” 7/8”
A34222020 1.1/4” 1.1/4” A88501917 1.3/16” 1.1/16”
A34222424 1.1/2” 1.1/2” A88502321 1.7/16” 1.5/16”
A34223232 2” 2” A88502726 1.11/16” 1.5/8”
A34224040 2.1/2” 2.1/2” A88503230 2” 1.7/8”

PH: 0800 FITTINGS 24 HOURS. Page A22
