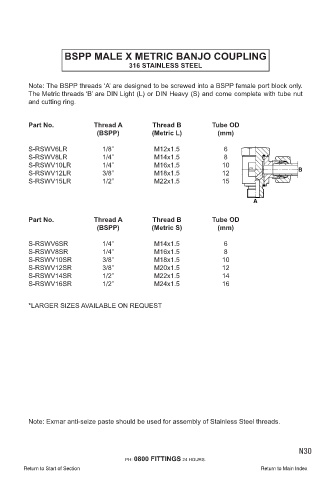

BSPP MALE X METRIC BANJO COUPLING
316 STAINLESS STEEL

Note: The BSPP threads ‘A’ are designed to be screwed into a BSPP female port block only.
The Metric threads ‘B’ are DIN Light (L) or DIN Heavy (S) and come complete with tube nut
and cutting ring.

Part No. Thread A Thread B Tube OD
(BSPP) (Metric L) (mm)

S-RSWV6LR 1/8” M12x1.5 6
S-RSWV8LR 1/4” M14x1.5 8
S-RSWV10LR 1/4” M16x1.5 10
S-RSWV12LR 3/8” M18x1.5 12
S-RSWV15LR 1/2” M22x1.5 15

Part No. Thread A Thread B Tube OD
(BSPP) (Metric S) (mm)

S-RSWV6SR 1/4” M14x1.5 6
S-RSWV8SR 1/4” M16x1.5 8
S-RSWV10SR 3/8” M18x1.5 10
S-RSWV12SR 3/8” M20x1.5 12
S-RSWV14SR 1/2” M22x1.5 14
S-RSWV16SR 1/2” M24x1.5 16

*LARGER SIZES AVAILABLE ON REQUEST

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
